Glass Edging Machine ( Small Thin Glass )
Model Nr. DV-420




Technical specification
This machine is unique and is specially designed to grind the edge of small thin glass which is unable to be edged by ordinary straight edging machine.

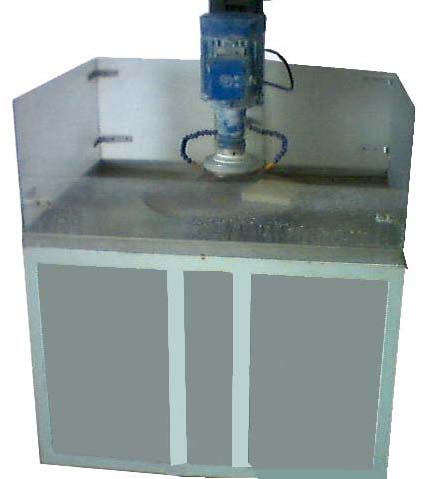

The machine is consist of a sturdy metal structure with a rotating platform, a motor with grinding wheel, water circulation system with pump and tank.


Operation procedure

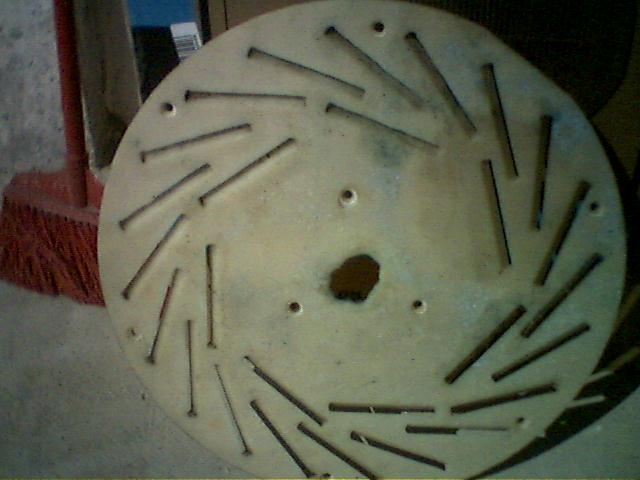

1. A jig and fixture is required. There are many slots on it. A stack of glass with several pieces of small thin glass is put inside each of the slot. The total thickness of each glass stack should be similar to the thickness of each slot such that the glass stack is fix and does not move inside the slot. Another glass stack is put inside another slot until all the slots are filled with glass stack.

2. When it is ready, the jig and fixture is put on the rotating platform and is then fixed by clamp or screw.

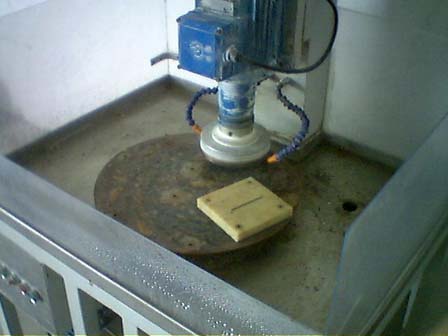

3. Water pump is started and water is sprayed onto the glass stack for cooling during grinding. Motor is started. Operator pulls down the handle so that the grinding wheel becomes closing to the glass stack until it touches the edges. Then grinding is begun. After one platform rotation, all the glass is edged.

4. If a fine edge is required, a polishing wheel is used to polishing for a second rotation of platform.

5. When ready, the jig and fixture is unloaded and the glass stacks are removed. Another batch of glass stack is loaded and the cycle is repeated.

6. If corner grinding is required, another jig and fixture is prepared with the slots well made such that the glass stack can be hold firmly inside the slot with 45 degree tilted.

7. If high production is required, more jigs and fixtures are prepared. After one jig and fixture is edged, another jig and fixture with glass stacks ready could be loaded right away so that the machine could continue to edge to minimize the downtime.


Technical data

Spindle motor speed

2840 rpm

Rotating motor speed

1400 rpm

Turntable speed

3 rpm

Spindle motor Power

1.5 kw

Rotating motor Power

0.37 kw

Water pump motor Power

0.12 kw

Power source

380AC/50Hz

Water consumption

0.5 m3

Working height

780 mm

Outer dimension

900 x 700 x 1350 mm

Weight

200 kg


Remarks

1. Custom design is on request.

2. All data and information listed in this document are subject to final confirmation.
