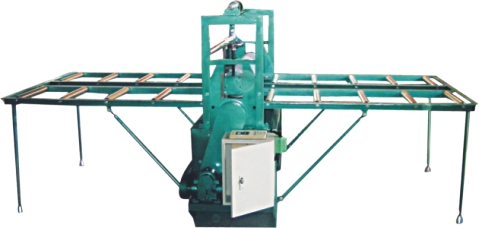

Film Application Machine
Model Nr.: FAM-1300




Technical Specification

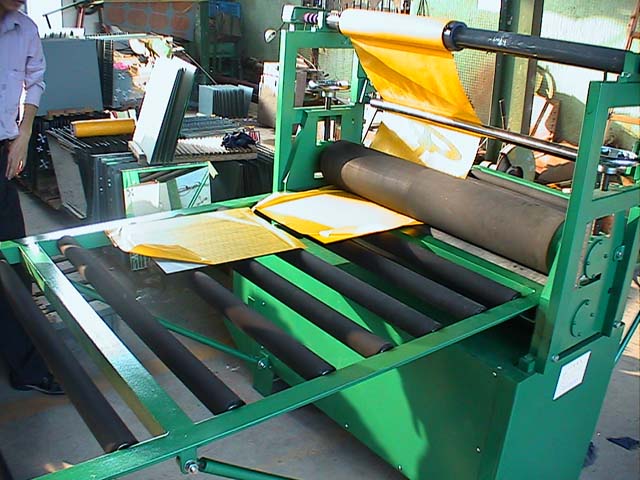

This machine is composed of upper and lower rollers, driving mechanism, loading/unloading conveyors, control panel, film supporter, buffing roller. A foot pedal is used to start/stop the machine through frequency converter. The speed could be adjusted. It is a user friendly machine with easy maintenance.


Technical Data

Film application width

1300 mm

Speed

0-16 m/min (adjustable by frequency converter)

Max. glass thickness

70 mm

Max. glass weight

200 kg

Max. film weight

40 kg

Installed power

0.75 kw

Voltage

380V / 220V

Outer dimension

3114 x 1500 x 1400 mm

Weight

350 kg


Remark

1. Custom design is on request.
2. All data and information listed in this document is subject to final confirmation.
