Rotating Glass Bending Furnace


Technical specification

This furnace is specifically designed to bend any type of glass or mirror such as rear view mirror for vehicle and motorcycle, cosmetic mirror, glass for clock, pot lid, glass for lighting and lamp. The characteristic is as followings,
1) It is circular furnace body, high efficient thermal insulation material with lower energy consumption;
2) The temperature in the furnace is even and adjusted as per the process request;
3) Working table equipped with steeples speed regulation unit.

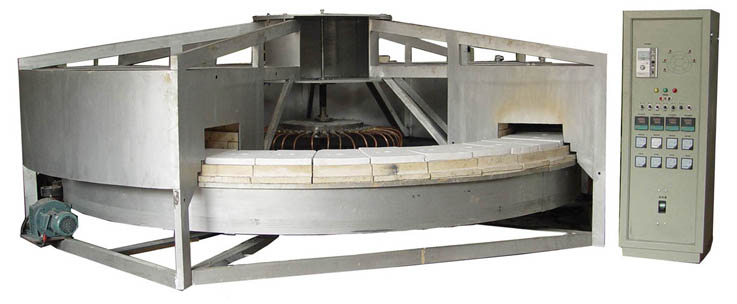

Products picture






Technical data

External diameter

3600mm

3800mm

5000mm

Internal diameter

2700mm

2800mm

4100mm

The maximum temperature

≤8000 C

≤7800 C

≤8000 C

Heating area temperature

1800

600

1800

Cooling area temperature

1200

1050

1200

Operation area temperature

600

600

600

Heating power

About 100 KW

About 90 KW

About 120 KW

Rotating speed

10—15r/h

5—15r/h

10—15r/h

of work table

(Adjustable)

(Adjustable)

(Adjustable)

Productivity

150 ?C 200 piece/hour

100 ?C 200 piece/hour

200 - 350 piece/hour


Option

Vacuum forming system for the processing of large bending depth and/or small glass.
