Glass Bending Furnace (Single Heating Chamber)
Drawer type
It is a drawer type bending furnace. Glass and bending mould are placed on a platform which could be pulled out sideward easily and completely, like a drawer, such that there is a lot of free space around for easy loading and unloading of glass and bending mould. This innovative design is unique and is appreciated by all of our customers worldwide.

Option

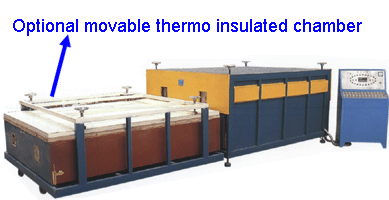

Since the annealing and cooling take so long and thus, the production capacity is quite low. We provide an optional MOVABLE thermo insulation chamber.. This UNIQUE design would be increased the productivity sharply.


Elevated Type
It is a heating chamber with heating elements located at the top. The bottom platform of the heating chamber can be detached from the heating chamber so that it can be raised up and lower down.

When we want to load bending fixture or glass, the platform is lower down for easy loading of bending fixture and glass. Then the platform raises up so that the platform seals the bottom of the heating chamber. Heating is then started.

When the heating cycle is completed, the platform starts to lower down for glass annealing and cooling until the complete cycle is achieved. The platform is completely lower down and the glass is unloaded and the next glass is loaded. The cycle is then repeated.

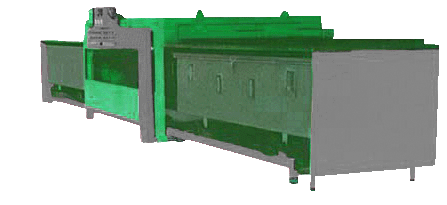

2 wagons and 3 stations Type

This type of furnace is specially designed for high production. It has three chambers. The heating chamber is located at the middle station. The bending fixture is loaded on a wagon at either side of the heating chamber. Then glass is loaded on bending fixture. The wagon is moved into the middle heating chamber for heating. Meanwhile, another bending fixture and glass are loading onto another wagon which situated in the other side of the heating chamber. When the bending cycle is completed, the wagon inside the heating chamber is moved out and meanwhile, the wagon with bending fixture and glass ready is moved inside the heating chamber to continue the heating cycle. The bend glass is unloaded and the next glass is loaded.



Model Number / 型号

B-S-D-1525

B-S-E-1525

B-S-0203-1525

B-S-D-2030

B-S-E-2030

B-S-0203-2030

Max. glass size (mm)

1500 x 2500

2000 x 3000



最大玻璃尺寸(毫米)

Type

Drawer

Elevated

3 stations and 2 wagons

Drawer

Elevated

3 stations and 2 wagons



类型

标准

升降

32

标准

升降

32

Power (kw)

50

80

80

80

100

140



功率(千瓦)

Outer dimension (m)

2.1x3x1.5

2.5x3.6x3

2.1x9x1.5

2.6x3.8x3

2.8x4x3

2.6x11x1.5



外型尺寸 (米)

Weight (kg)

1000

1500

2300

2000

2800

4000



重量(千克)



Model Number / 型号

B-S-D-2540

B-S-E-2540

B-S-0203-2540

Max. glass size (mm)

2500 x 4000



最大玻璃尺寸(毫米)

Type

Drawer

Elevated

3 stations and 2 wagons



类型

标准

升降

32

Power (kw)

120

140

200



功率(千瓦)

Outer dimension (m)

3.1x4.5x1.5

3.2x5x3

3.1x13.8x1.5



外型尺寸 (米)

Weight (kg)

4500

2000

4600



重量(千克)
