Feature & Spec

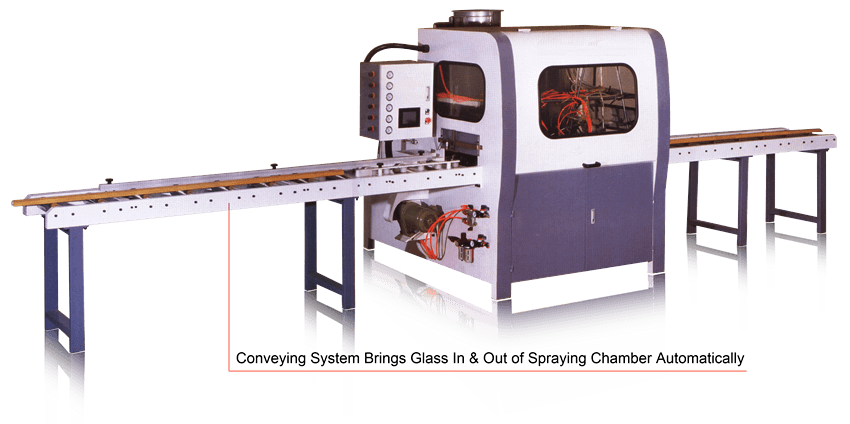

Gun Spray Glass Painting Machine With Continuous Conveying System
Features
- Glass Enters Into Spraying Chamber & Exit Out Automatically
- Glass Travels on Conveyor While Paint Spraying
- Apply Paint, Ink & Lacquer, etc on Glass by means of Gun Spraying Process
- Automatic Spraying Process Eliminates Labor Force
- Paint Turns to Mist & Vapour When Applying on Glass
- Excellent Paint Surface Finish
- Very Little Paint Consumption Per Square Meter of Glass
- Adjustable Guns Spraying Angle
- No Zig-Zag Paint Trace Found on Glass Surface
- Gun Spray Painting on Glass, Wood or Any Other Proper Materials
- Optional Air Pressurize & Water Curtain Air Purification System Prevent Paint Vapour from Escaping to Workshop

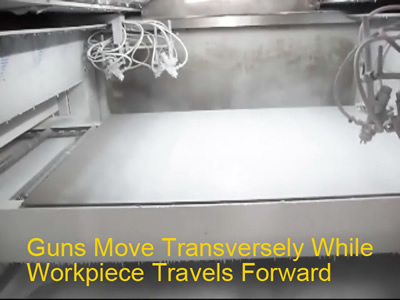

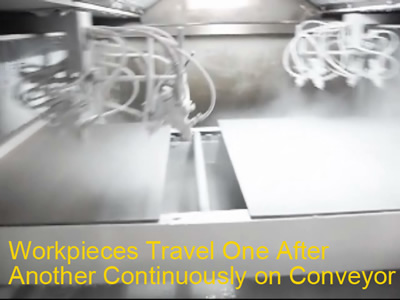

Work Pieces Continuously Travel on Conveyor During Gun Spraying

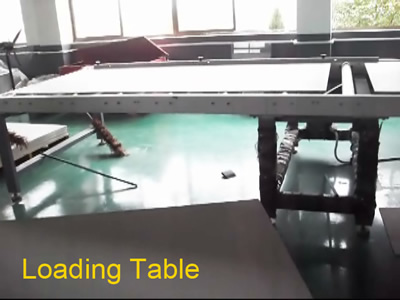

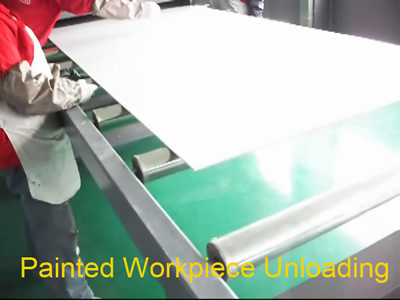

Gun spraying machine consists of two major system, gun spraying system and conveyor system. Unlike turntable design, work pieces travel while being gun spray painting. Work pieces continuously travel forward from loading table, gun spraying chamber till unloading table. This truely keeps gun running all the time to achieve the highest production capacity.
Specifications
| Models | GSGPM-B-1300 | GSGPM-B-1600 | GSGPM-B-2000 | |
| Max. Glass Width | 1300 mm | 1600 mm | 2000 mm | |
| Max. Glass Loading | 300 kg | 300 kg | 300 kg | |
| Nr. of Guns | 8 | 8 | 8 | |
| Glass Travel Speed | Max. 5 m/min. | Max. 5 m/min. | Max. 5 m/min. | |
| Production Capacity (base on 4 m/min. travel speed, provided data only for reference, may vary from requested paint surface finish) |
4 KW | 4 KW | 4 KW | |
| Install Power | 13 KW | 13 KW | 13 KW | |
| Compress Air | Pressure | 0.8 MPa | 0.8 MPa | 0.8 MPa |
| Consumption | 500 Lt/min. | 500 Lt/min. | 500 Lt/min. | |
| Voltage | 350 V / 3 phase / 50Hz | |||
| Outer Dimension | Length | 5 m | 5 m | 5 m |
| Width | 4.2 m | 4.6 m | 5 m | |
| Height | 2.8 m | 2.8 m | 2.8 m | |
| Weight | 2.5 tons | 3 tons | 3.8 tons | |
